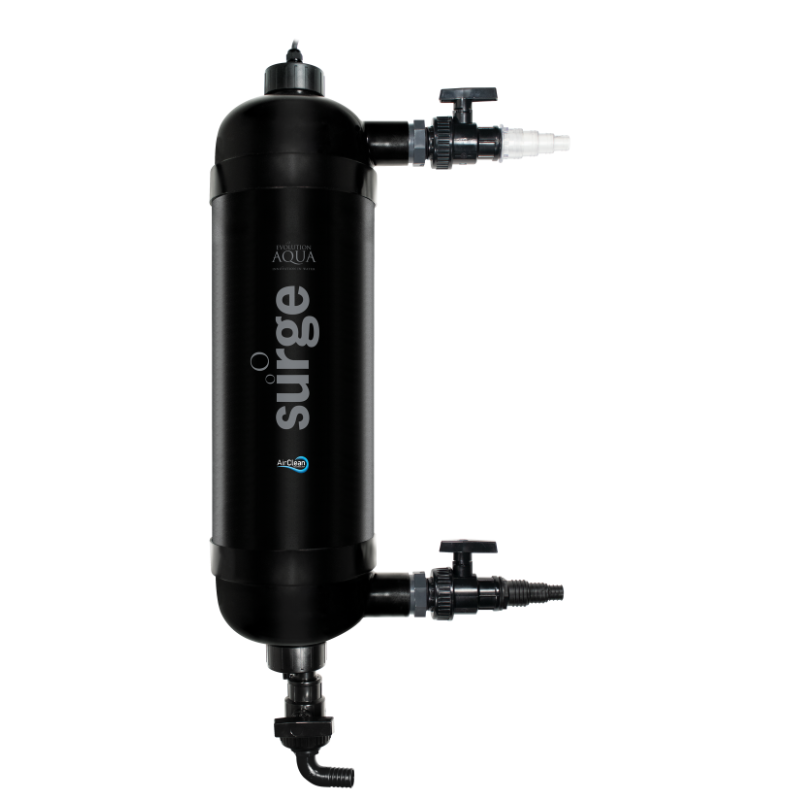

Evolution Aqua Surge Filter

Innovative Pond Filter with UVC

The Evolution Aqua Surge Filter is an innovative filter that will help to deliver crystal clear, healthy water for ponds up to 5,000 Litres. There are no dirty sponges or foams to clean so you get to keep your hands dry, giving you more time to enjoy your pond.

Keep your hands dry
Foam free, easy self-cleaning technology.

More time to enjoy your pond
Reduces filter cleaning and maintenance.

Crystal clear and healthy water
Enhanced filtration with K+Media and integrated UVC.

HOW IT WORKS?

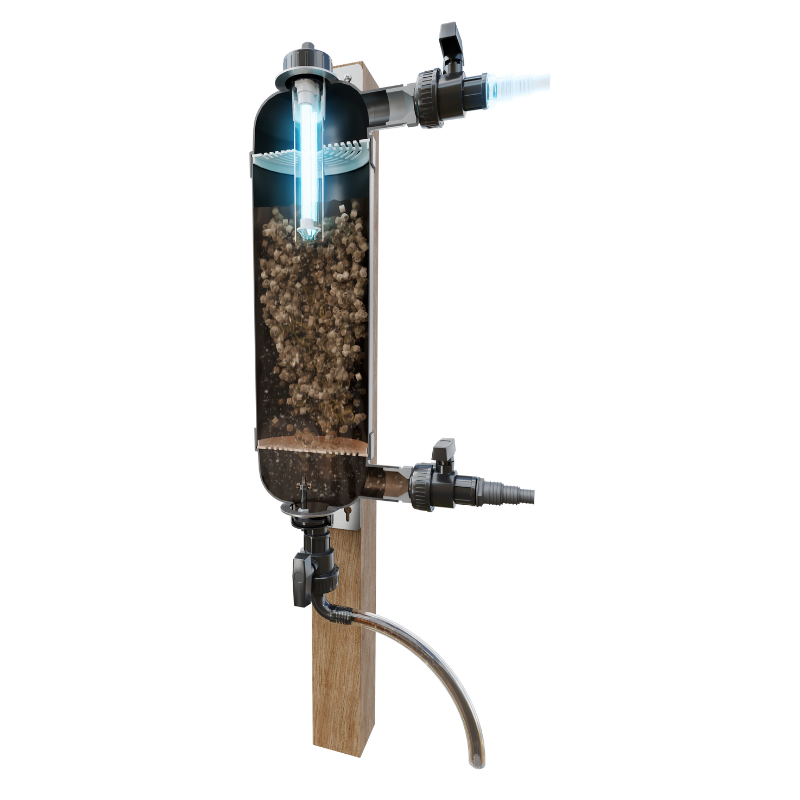

As pond water is pumped up through the Surge Filter the K+Media becomes a mechanical barrier that traps debris as it flows through. Waste particles remain trapped within the K+Media until they are dislodged and flushed away during the patented Air Clean Technology cleaning process.

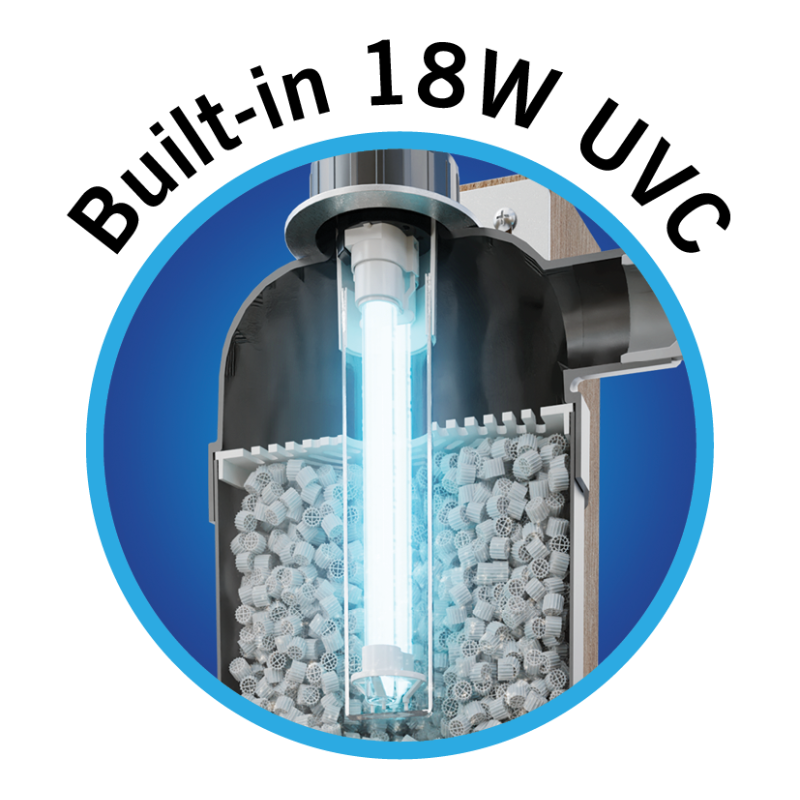

Built-in 18 Watt UV

The built-in UV Clarifier helps to get rid of green water. It is easy to maintain and is simple to wire into the mains power supply

K+Media - Mechanical and Biological Filtration

Independently tested K+Media provides enhanced biological and mechanical filtration catching waste down to 1 micron.

Simple To Set-Up

Stepped hosetails are supplied for simple connection to flexible hose. Ball valves are also supplied for easy operation. And the clear hose provided allows you to see waste water flow when draining.

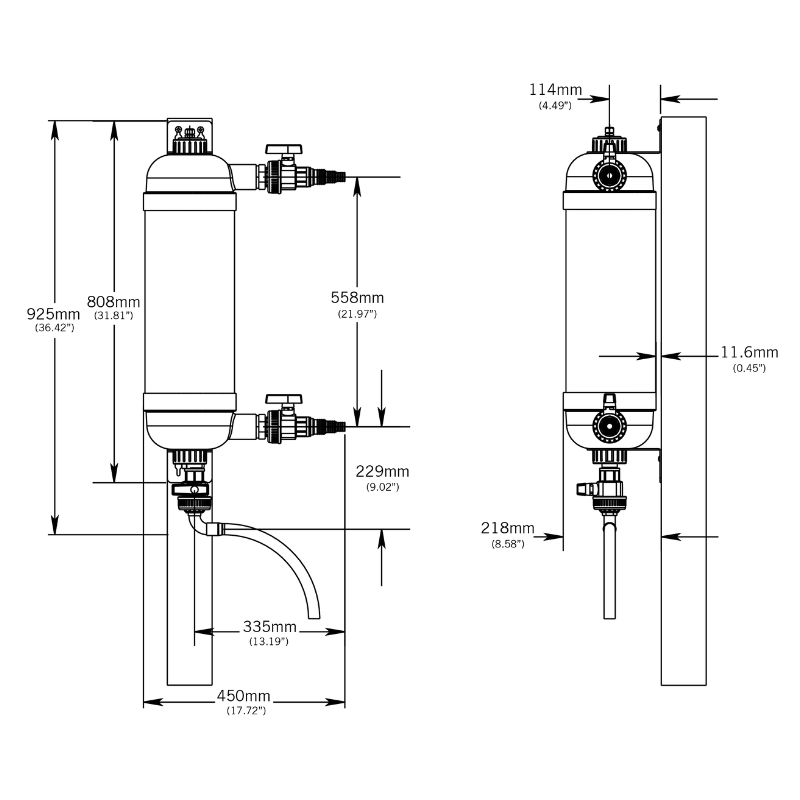

Easy To Install - Mounting Brackets Included

The compact design of the Surge Filter is perfect for when space is limited. Mounting brackets are included for secure installation.

HOW IT CLEANS?

Air Clean Technology uses open cell K+Media and air to clean the filter providing a low energy and cost-effective solution. With the pump off, ball valves closed, and waste valve open, air is drawn into the filter. As air and water mix inside the filter, the media starts to move chaotically, dislodging the trapped waste. Dirty water then exits the bottom of the filter via the waste line, leaving clean media.

Save Money And Time

K+Media never needs replacing and it improves over time, saving you money. The Surge Filter doesn’t need to be cleaned as often as sponge or foam filters, saving you time.

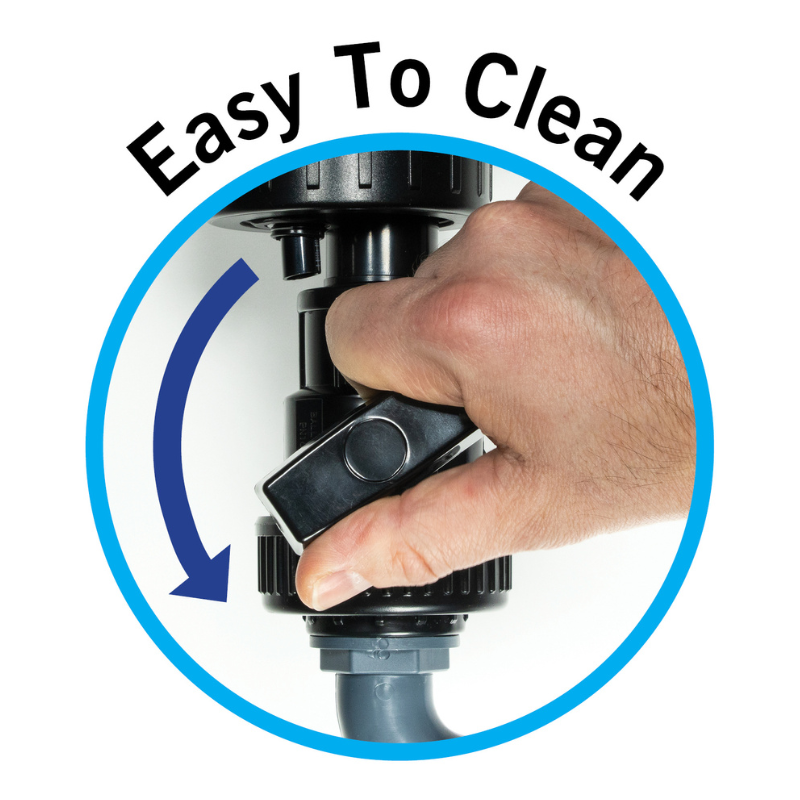

Turn To Clean

Simply turn the valves for quick and easy cleaning. With no filter sponges or foams, there’s no mess, so you get to keep your hands clean and dry.

Reliable

The Surge Filter, with Air Clean Technology, doesn’t have any moving parts, so it is reliable and virtually maintenance-free.

MAX POND SIZE: 5,000 Litres / 1,100 Gallons.

INLET: 3/4", 1", 1 1/4" UK / 20mm, 25mm, 32mm EU.

OUTLET: 3/4", 1", 1 1/4" UK / 20mm, 25mm, 32mm EU.

WASTE: 1" UK / 25mm EU.

MAX FLOW RATE: 3,500 lph / 770 gph.

OPTIMUM FLOW RATE: 2,500 lph / 550 gph.

K+MEDIA SUPPLIED: 4.5 Litres.

WATER VOLUME IN FILTER: 19 Litres / 4.2 Gallons.
