Evolution Aqua EVO UV
Evolution Aqua EVO UV
Evolution Aqua
Improves water clarity by eradicating green water

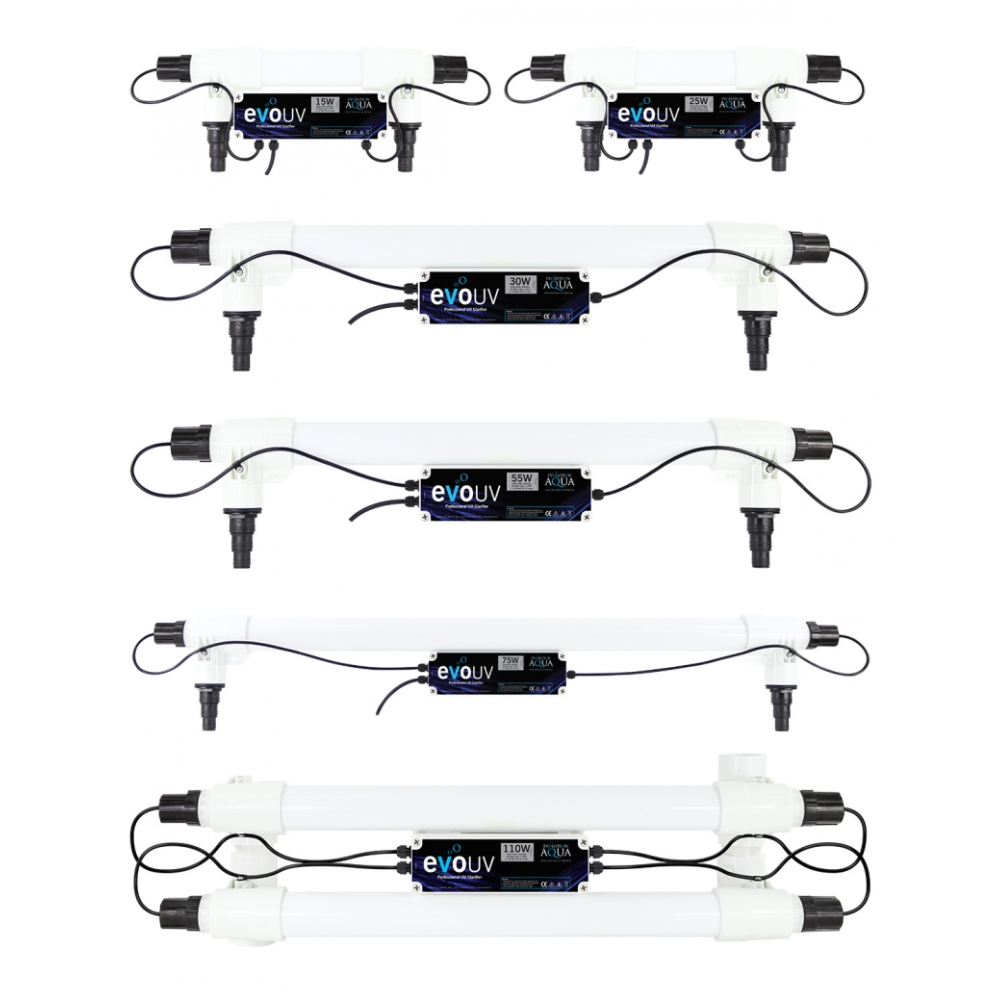

Easy to install, available in six models
2 year guarantee
Lead time, 1-2 working days
Couldn't load pickup availability
UK delivery available
Description
Description
Professional ultraviolet clarifiers for ponds
Evolution Aqua’s pond UV clarifiers have been completely re-designed for 2021, to deliver even greater performance and improved serviceability. Our range of six evoUV pond clarifiers are made using the very latest technology and design techniques, ensuring there is even water flow through the unit, and optimum ultraviolet light penetration.
One new feature is the ease of the serviceability of the evoUV. Changing bulbs, quartz sleeves or replacing a ballast are quick and simple to do.
The evoUV is simple to install, with universal mounting plates allowing you to fix the unithorizontally or vertically, or at any angle you choose.

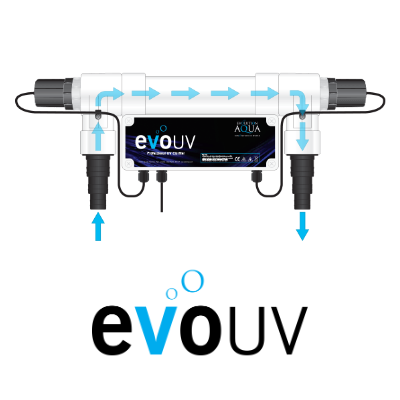

How the evoUV works
The evoUV range of clarifiers have been designed to clear green water which is caused by single celled green algae and prevent it from returning. They will work alongside many different filtration systems but when used alongside Evolution Aqua’s pond filtration systems, the evoUV will help to deliver crystal clear and healthy pond water.
Your evoUV professional quality UV can be connected to your pond pump and filter with flexible hose using the stepped hosetails provided, or you can install the unit using hard pipe.
Installing the evoUV
PUMP-FED INSTALLATION
Install evoUV before the filter on the pipework run from the pond
GRAVITY-FED INSTALLATION
Install evoUV after the filter on the return to pond pipework run.
Product Specification
Product Specification
| Model | Max. pond size | Max. flow rate | Bulb Power | Inlet/Outlet | Fittings supplied |
| 15,000 Litres3,300 UK Gallons3,963 US Gallons | 7,500 Litres/hr1,650 UK Gallons/hr1,982 US Gallons/hr | 15W(1 x 15W T8) | 1½" | 2 x 1½"Threaded Hosetails | |
| 20,000 Litres4,400 UK Gallons5,284 US Gallons | 10,000 Litres/hr2,200 UK Gallons/hr2,642 US Gallons/hr | 25W(1 x 25W T8) | 1½" | 2 x 1½"Threaded Hosetails | |
| 30,000 Litres6,600 UK Gallons7,925 US Gallons | 15,000 Litres/hr3,300 UK Gallons/hr3,962 US Gallons/hr | 30W(1 x 30W T8) | 1½" | 2 x 1½"Threaded Hosetails | |
| 55,000 Litres12,100 UK Gallons14,530 US Gallons | 20,000 Litres/hr4,400 UK Gallons/hr5,284 US Gallons/hr | 55W(1 x 55W T8) | 1½" | 2 x 1½"Threaded Hosetails | |
| 75,000 Litres16,500 UK Gallons19,815 US Gallons | 25,000 Litres/hr5,500 UK Gallons/hr6,605 US Gallons/hr | 75W(1 x 75W T8) | 1½" | 2 x 1½"Threaded Hosetails | |
| 75,000 Litres16,500 UK Gallons19,815 US Gallons | 25,000 Litres/hr5,500 UK Gallons/hr6,605 US Gallons/hr | 110W(2 x 55W T8) | 2" | No Fittings Supplied |
- Liner Length m / ft
- Liner Width m / ft
- Liner Area m2 / ft2
- Pond Volume l / gal
- Liner Length m / ft
- Liner Width m / ft
- Liner Area m2 / ft2
- Pond Volume l / gal
Collapsible content
Sizing
evo15 and evo25
The overall dimensions of evo15 and evo25 are identical. They are 540mm (l) x 116mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 319mm. The evo15 uses a standard length 15W T8 UV bulb and the evo25 uses a standard 25W T8 UV bulb.
evo30 and evo55
The overall dimensions of evo30 and evo55 are identical. They are 990mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo30 uses a standard length 30W T8 UV bulb and the evo55 uses a standard 55W T8 UV bulb.
evo75
The overall dimensions of evo75 are 1293mm (l) x 85mm (w) x 153mm (h) excluding hosetails. The distance between the centre of the inlet and the centre of the outlet is 1071.5mm. The evo75 uses a standard length 75W T8 UV bulb.
evo110
The overall dimensions of evo110 are 990mm (l) x 195mm (w) x 280mm (h). The distance between the centre of the inlet and the centre of the outlet is 768.5mm. The evo110 uses two standard length 55W T8 UV bulbs.
