Elevate QuickSeam Pipe Flashing
Elevate QuickSeam Pipe Flashing
Elevate
Can be cut to fit pipes 25mm – 152mm
Pre-fabricated with QuickSeam Tape on the base
Lead time, up to 5 working days
Couldn't load pickup availability
UK delivery available
Description
Description
Elevate QuickSeam Moulded Pipe Flashing available from AquaLiners Direct

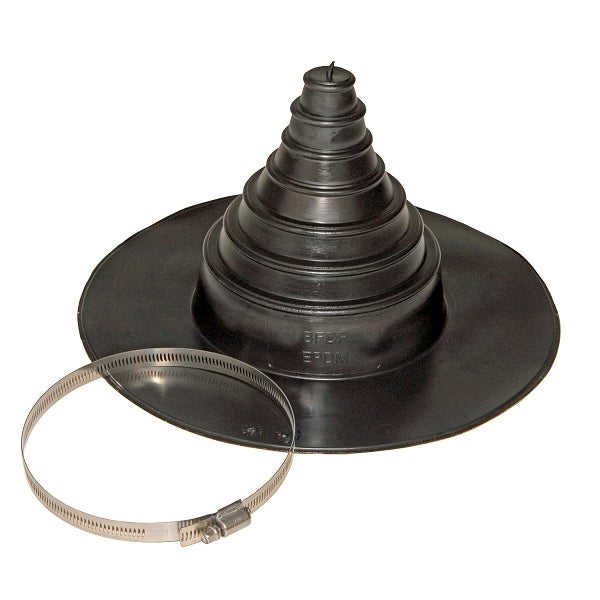

Elevate QuickSeam Moulded Pipe Flashing is used to flash around round rigid pipe inlets that penetrate the pond liner. The Pipe Flashing is a prefabricated boot, similar in shape to a witch hat, that has QuickSeam Tape laminated to a flange around the base so that it can be attached to the pond liner. It can be cut to fit pipes from 25mm to 152mm in diameter.
For details on how to install Pipe Flashing, please see Detailing Pipes in our Help and Guides section.
Product Specification
Product Specification
| Brand | Elevate QuickSeam Pipe Flashing |
| Use With | All EPDM liners (Elevate & SealEco) |
| Size | One size fits pipes 25mm – 141mm diameter |
| Other Sizes Available | No |
| Coverage |
N/A |
| Aquatic, plant & human safe | Yes |
| Solvents | None |
| Technical Information Sheet | N/A |
| Uses |
Sealing around rigid, round inlet and outlet pipes |
- Liner Length m / ft
- Liner Width m / ft
- Liner Area m2 / ft2
- Pond Volume l / gal
- Liner Length m / ft
- Liner Width m / ft
- Liner Area m2 / ft2
- Pond Volume l / gal
Collapsible content
Sizing
QuickSeam Pipe Flashing comes in one size only, but can be cut to fit various pipes by removing the required number of rings:
25 mm - 35 mm
41 mm - 48 mm
51 mm - 67 mm
70 mm - 92 mm
102 mm - 114 mm
127 mm - 141 mm
The correct size should always be verified on site prior to cutting the Pipe Flashing.
